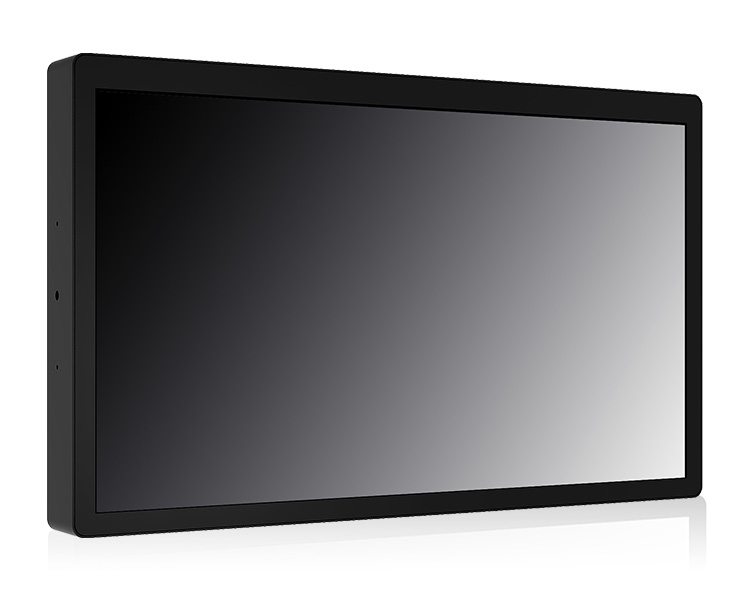

SEETEC 17.3" 1920x1080 Projected Capacitive 10-Point Touch LCD Open Frame Monitor PF173-9CT

Hits:

Model:PF173-9CT

Introduction

Screen Size:  17.3"
Resolution:   1920x1080 pixels
Aspect ratio: 16:9
Brightness:   400cd/m2

Input

HDMI, YPbPr, Video, Audio, DVI, VGA, USB for Touch

Output

Stereo Headphone, Speaker(built-in)

DM

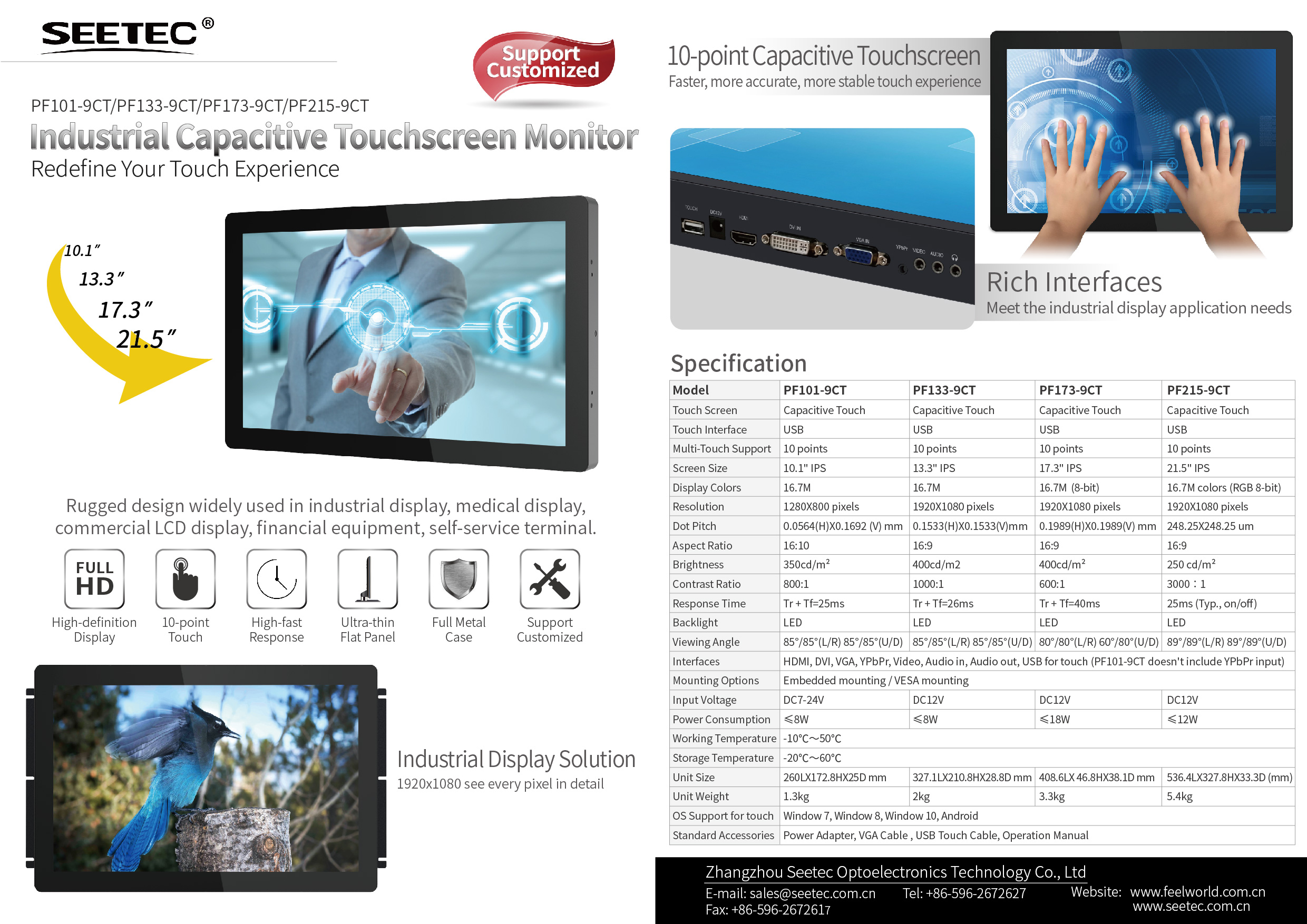

pdf Shop/2017/11/PF(101,133,173,215)-Specification.jpg

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

capacitive-touchscreen-display

SEETEC industrial capacitive touchscreen monitor with rugged metal frame, flat LCD panel design, compact structure, durable, with impact resistance, anti-interference, heat dissipation and other advantages, meeting the embedded or external installation needs simultaneously. Its several top features along with superior engineering make these open frame monitors as ideal solutions for high quality displays.
The capacitive touch screen is equipped with 10 point touch, fast, accurate and smooth touch experience. It is widely used in industrial display, medical display, commercial LCD display, financial equipment, self-service terminal.



Industrial Display Solution
1920x1080 see every pixel in detail
Industrial high-definition LCD screen, 1920x1080 Full HD resolution, the image is clear and natural; at the same time with low power consumption, long-time operation ability, can adapt to almost all of harsh environment.
open-frame-lcd-monitor



10-point Capacitive Touchscreen
Faster, more accurate, more stable touch experience
SEETEC using the 10 point projected capacitive touch technology, the glass surface smooth touch, give you an impeccable fast touch experience.

open-frame-touch-screen-monitor



Accurate Touch Screen
Use ultra-sensitive touch screen
Only need one time calibration to improves touch accuracy, no dead end touch, no break, drift, when you write on it, you can hardly feel any delay or deviation.
multi-touch-screen-monitor



Compatible System
Support Windows 7 / Windows 8 / Windows 10 / Android operating systems, greatly enhanced the versatility of the terminal, for industrial, medical, hotel, and other industry display, meet the interactive touch demand.
industrial-touch-screen-monitor

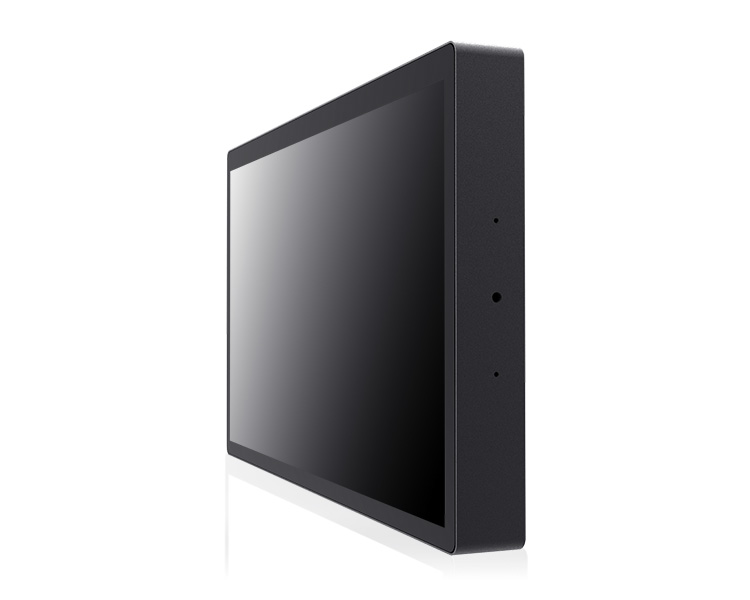

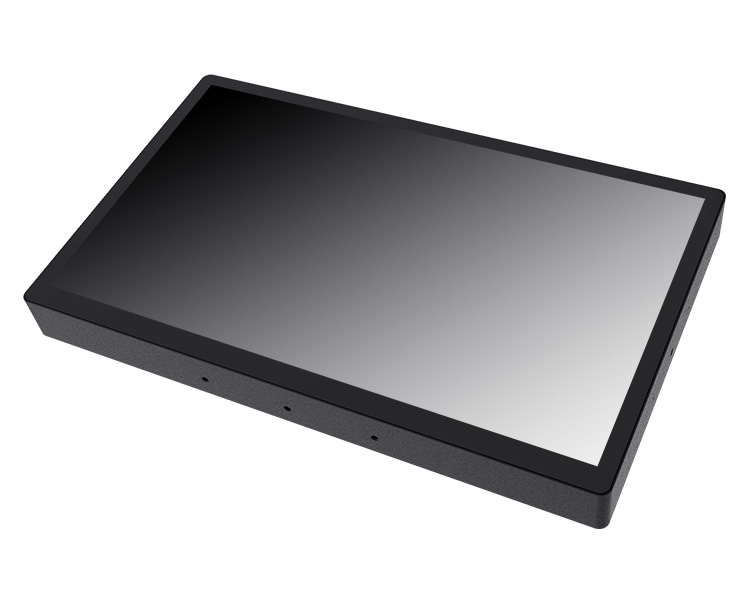

  • Flat Panel
    Smoother and faster

    Interactive touch display, flat slim design, coupled with circular streamline shape, no sharp edges, ergonomic design, simple and elegant.
  • touch-screen-kiosks



17-touch-screen-monitor



led-touch-screen-monitor

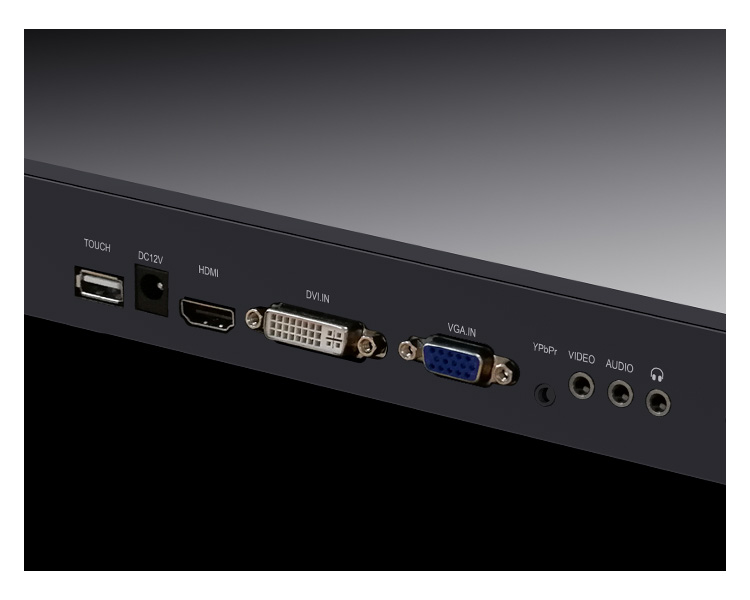

Rich Interfaces
Meet the industrial display application needs
Not only equipped with USB (for touch), DC12V power, HDMI, VGA, YPbPr, VIDEO, AUDIO input interface, also equipped with 3.5mm stereo headphone output and speakers.
touch-display-hdmi

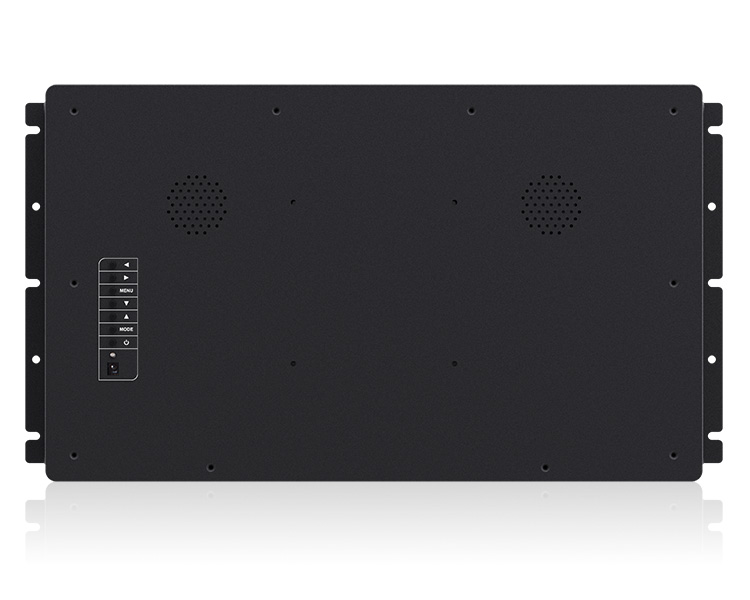

Flexible Installation
Support embedded, VESA wall-mounted and other installation methods, to facilitate the flexible display application, ideal solution for kiosk integrator and store retail. (The rack mount brackets can meet your embedded installation requirements, the standard VESA 100x100mm screw hole can support wall-mounted installation.)
industrial-touch-monitor



Industrial Grade Rugged Design
All metal shell, compact, durable, designed for all kinds of industrial needs, impact resistance, anti-interference, heat fast, to adapt to a variety of harsh working environment. Metal narrow frame design, rounded corners, exquisite design.
rugged-touch-screen-monitor

open-frame-lcd-monitor



Application Solution
Widely used in industrial display, industrial control, medical equipment, military field, fire equipment, car display, video conferencing systems, entertainment and leisure, business self-help, financial institutions, query equipment and other fields, and also applies to harsh environments.

/touch-kiosk-lcd-display

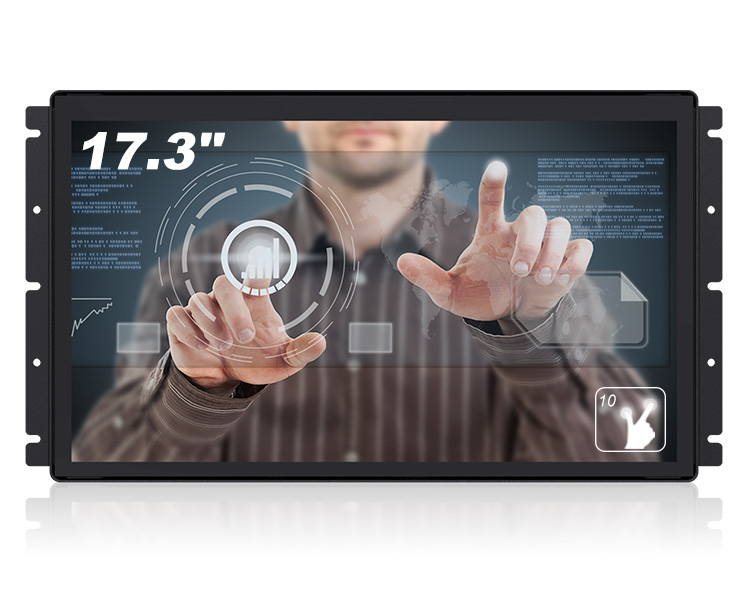

1. 17.3 inch Full HD (1920x1080) 400cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. Projected capacitive 10-point Touch Screen
4. Full metal construction
5. HDMI, DVI, VGA, YPbPr, Video, Audio Signal Input

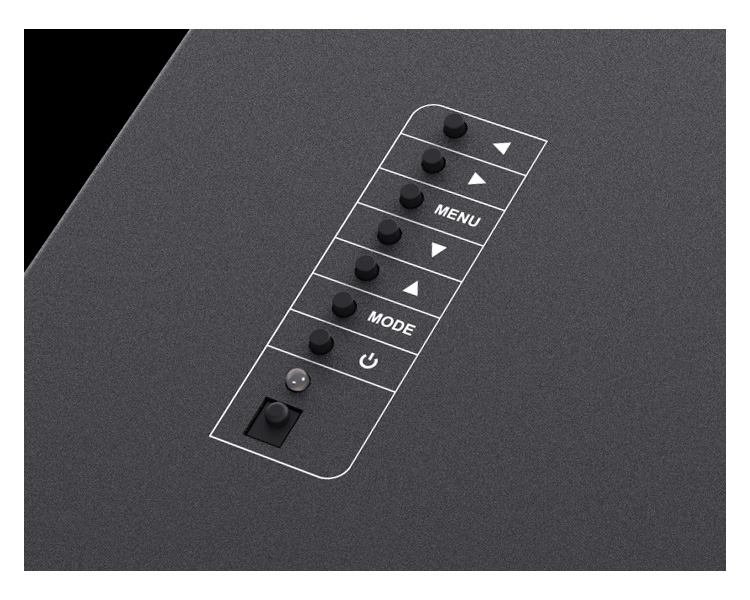

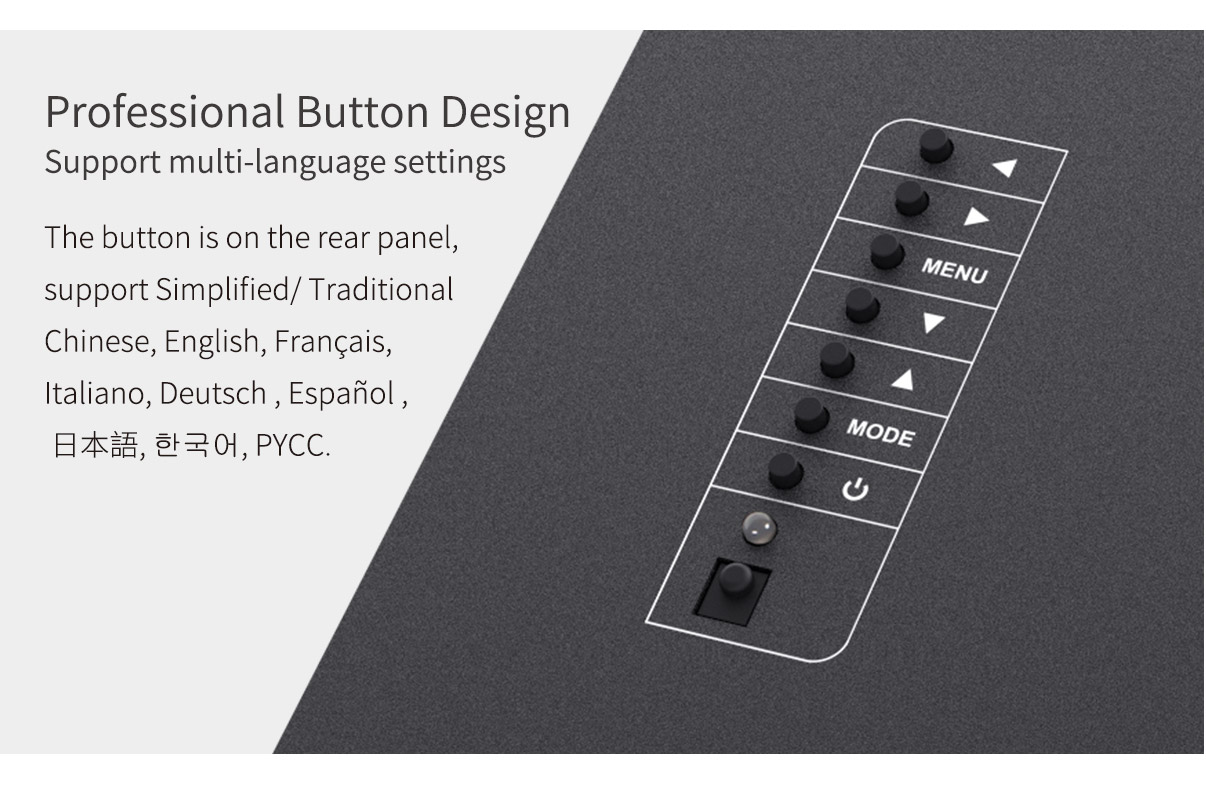

6. OSD control on the back cover
7. DC 12V Power Input
8. Rugged industry design
9. Support embedded rack mounted / VESA wall mounted
10. USB touch interface Support Windows 7/ 8/ 10 Compliant, Android OS system




Display Spec.
 Model  PF173-9CT
 Touch Screen  Capacitive Touch
 Touch Interface  USB
 Multi-Touch Support  10 Points
 Screen Size  17.3" IPS
 Display Colors  16.7M colors (RGB 8-bit)
 Resolution  1920×1080 pixels
 Dot Pitch  0.1989(H)×0.1989(V) mm
 Aspect Ratio  16:9
 Brightness  400cd/m²
 Contrast Ratio  600:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 60°/80°(U/D)

Interfaces
HDMI, DVI, VGA, YPbPr, Video, Audio in, Audio out, USB for touch

OS Support for Touch
Window 7, Window 8, Window 10, Android

Mounting Options
VESA 4-hole 100mm mounting / Rack Mount

General
 Input Voltage  DC12V
 Power Consumption  ≤18W
 Working Temperature  -10℃~50℃
 Storage Temperature  -20℃~60℃
 Unit Size   408.6Lx246.8Hx38.1D (mm)
 Unit Weight  3.3kg





Dimensions (Unit: mm)

Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems

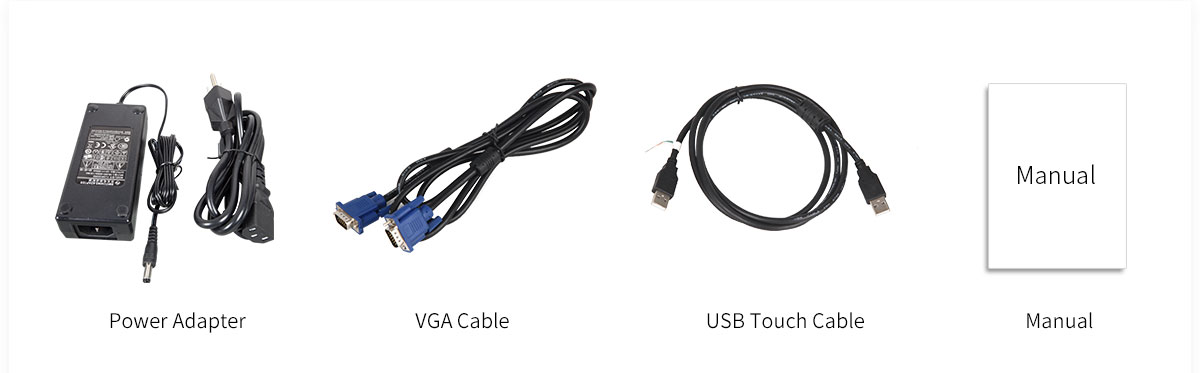

Standard Accessories:
1× Power Adapter
1× VGA Cable
1× USB Touch Cable
1× Manual
