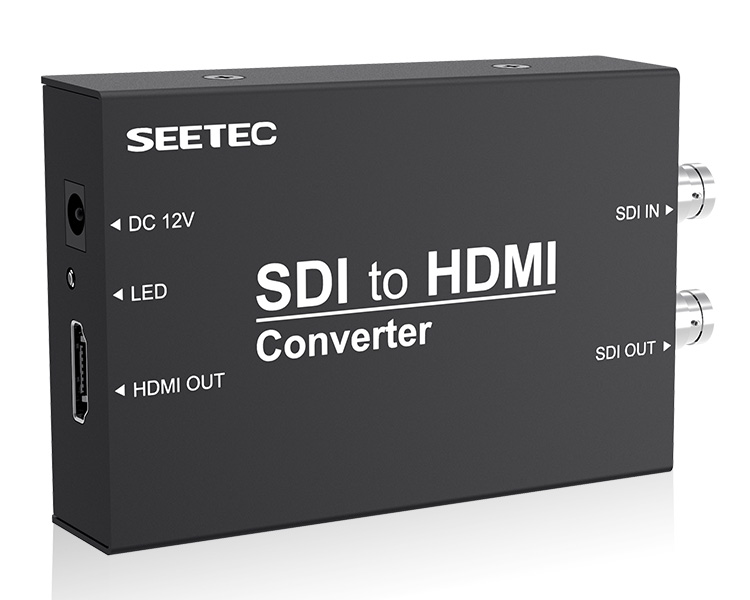

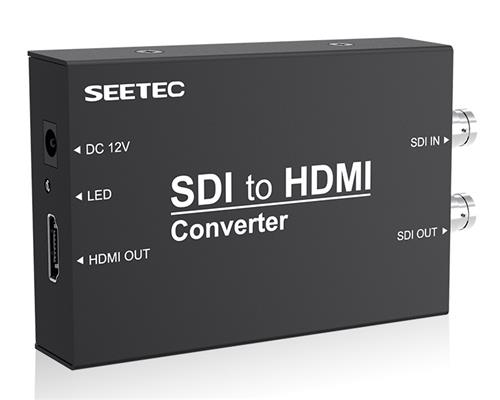

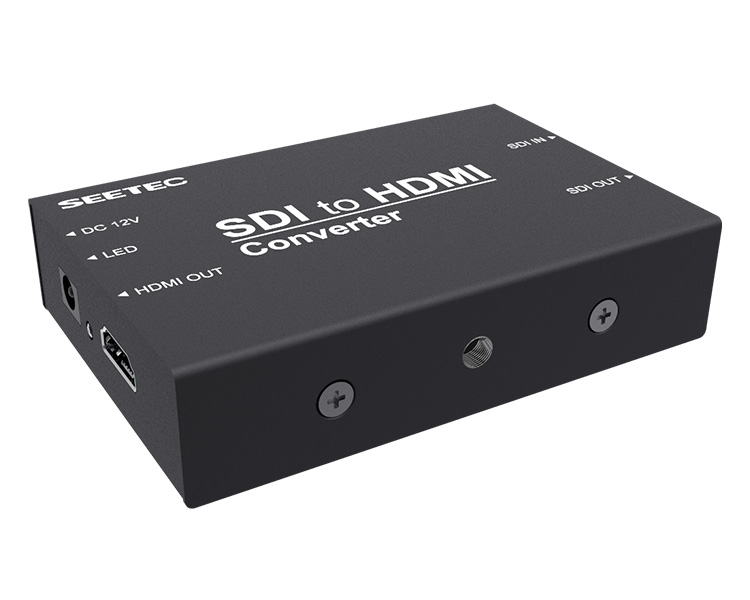

SDI to HDMI Converter STH

Hits:

Model:STH

Introduction

● 1 SDI Input, 1 HDMI Output, 1 SDI Loop Output
● Double Power Supply System
● Standard 1/4 Screw Threads
● Power Indicator
● Heavy Duty Metal Housing

Input

3G/HD/SD-SDI

Output

3G/HD/SD-SDI, HDMI

DM

pdf

Download

  • OVERVIEW

  • FEATURES

  • SPECIFICATIONS

  • VIDEO

  • APPLICATION

  • ACCESSORIES

/sdi-hdmi-converter

SEETEC New Release Mini Converters
The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ? HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.

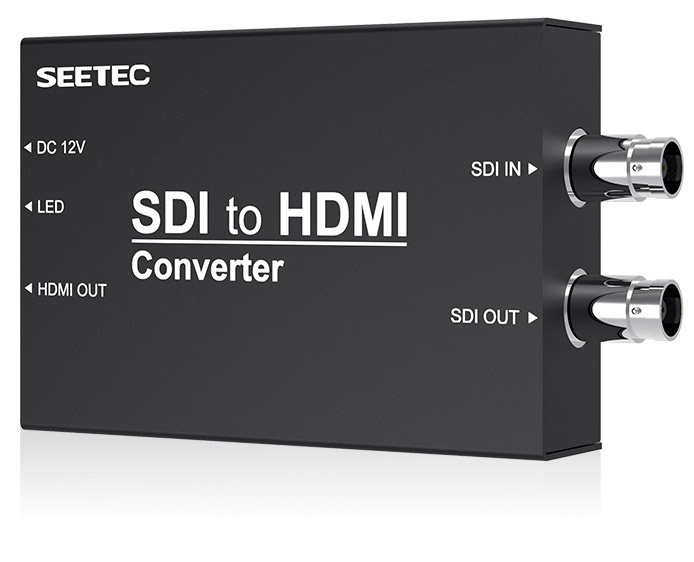

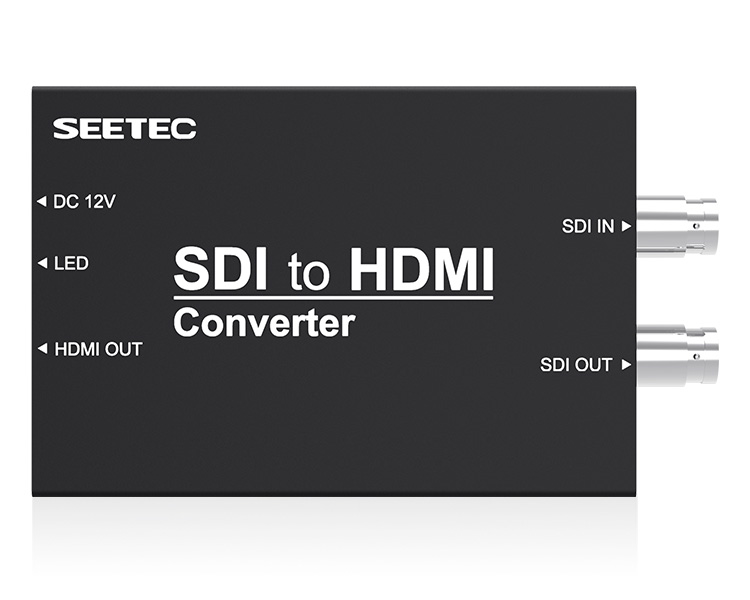

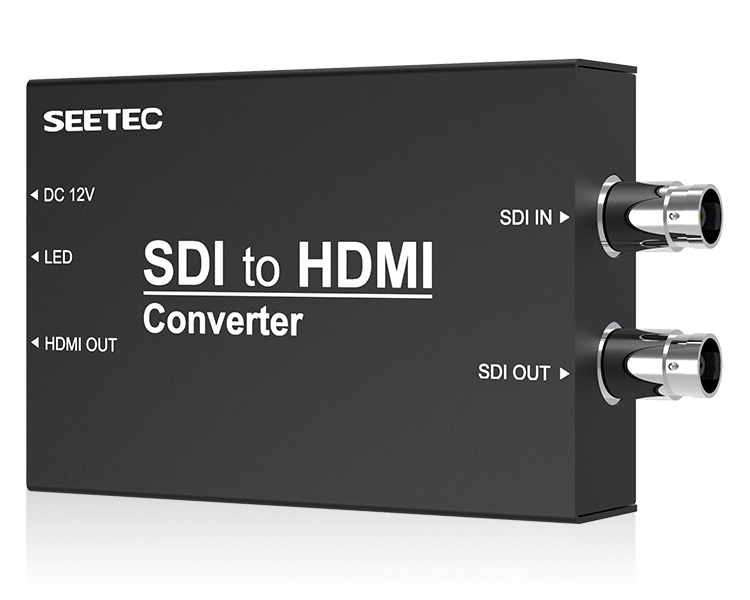

SDI to HDMI Converters
1X SDI input
1X HDMI output
1X SDI output

bnc-to-hdmi-converter

hd-sdi-converter

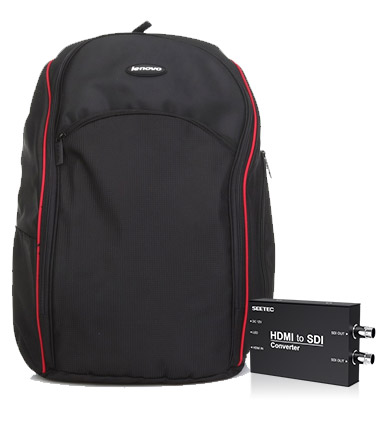

  • Use Anywhere
    Mini size broadcast quality converters!
    SEETEC Mini Converters are so small you can use them anywhere! Whether you're carrying one in your laptop bag or in your outside broadcast van and road cases. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!

  • sdi-to-hdmi-adapter



sd-to-hdmi-converter

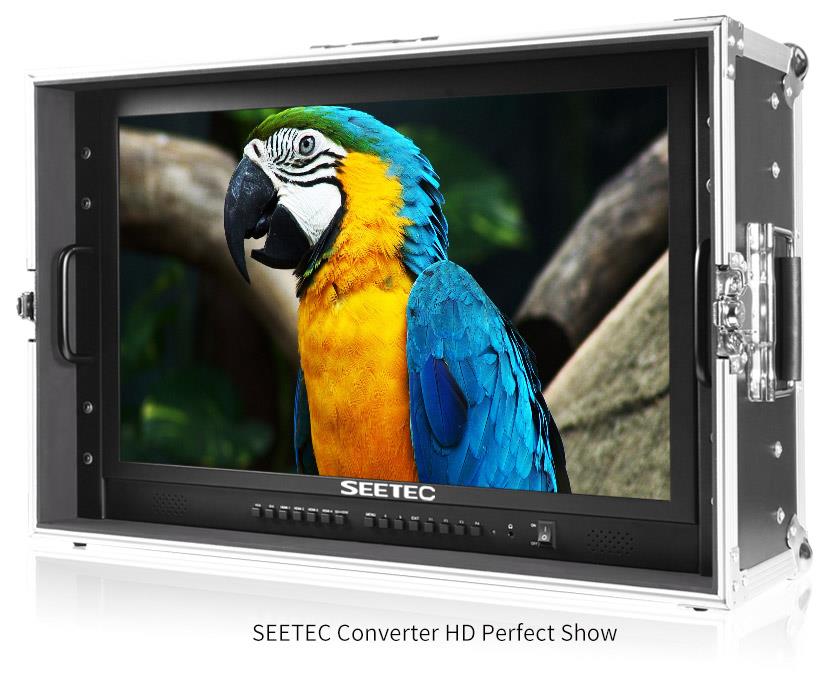

Enjoy Perfect Visual Experience
High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.

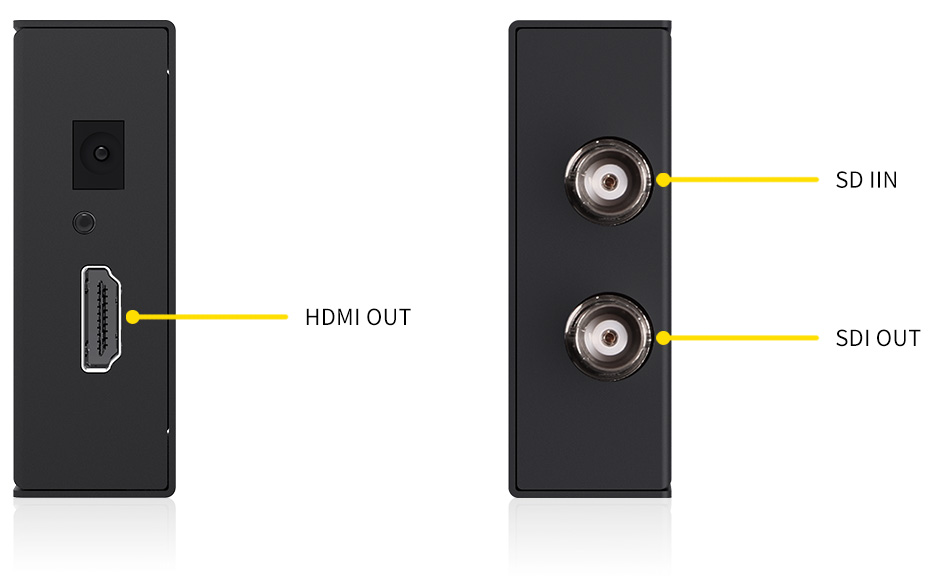

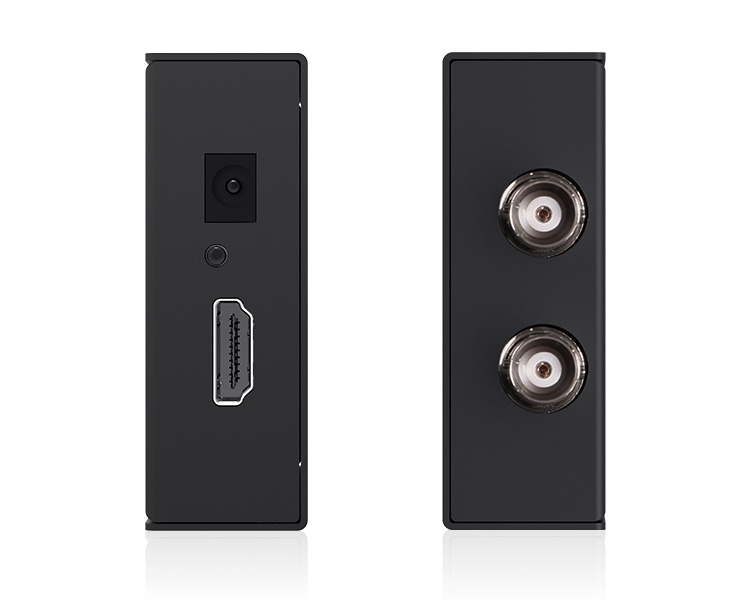

Full Size Connections
Works with the cables you already have!
SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter SDI to HDMI features One SDI input, One SDI loop-out, One HDMI output so you can connect it to multiple devices such as switchers, routers, monitors and more!

sd-to-hdmi-converter

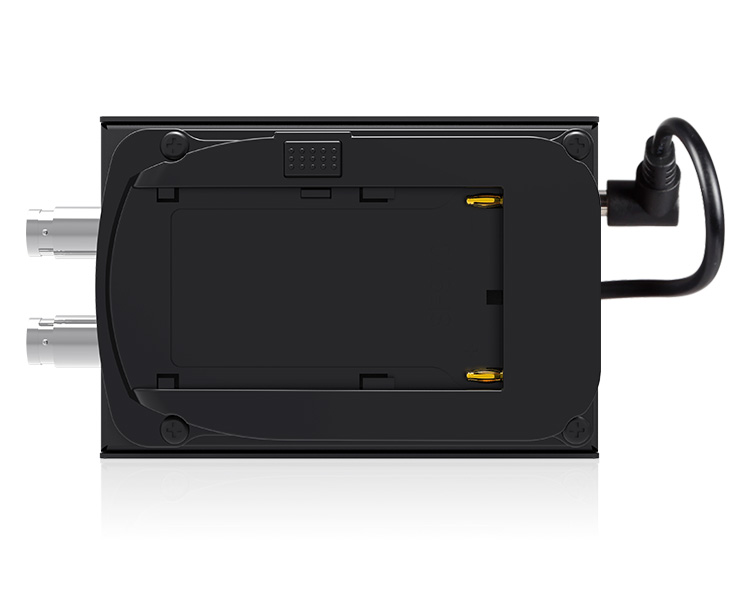

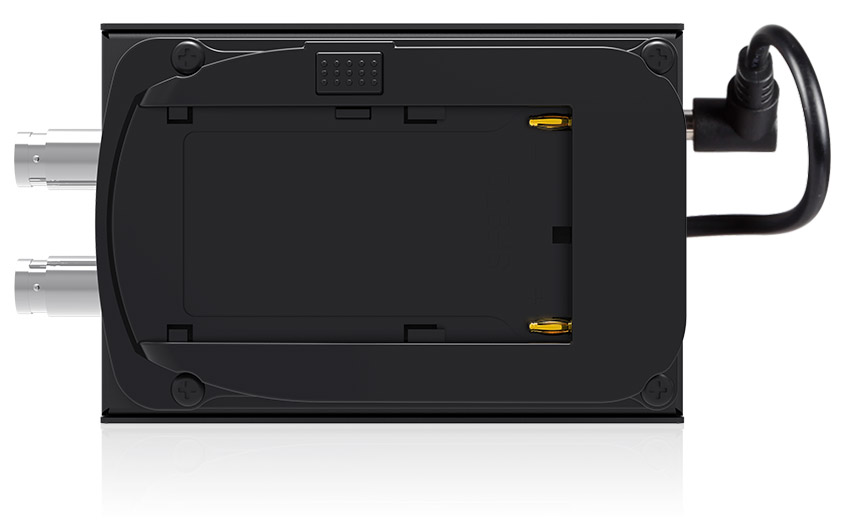

Flexible Double Power Supply System
The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it's the best choice for outdoor operation.

bnc-converter-to-hdmi



Simple, Compact and Rugged
Built for any environment!
SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.

1080p-hd-sdi

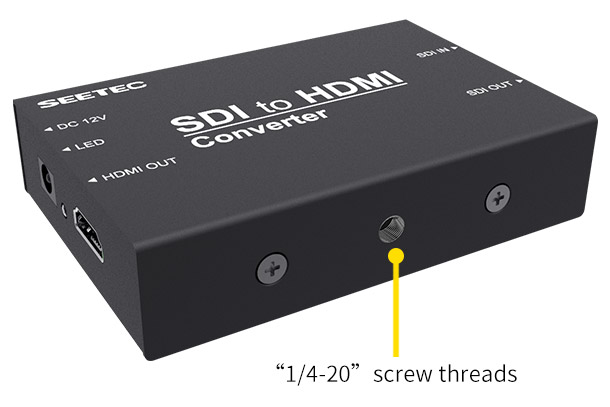

Flexible Installing
Standard “1/4-20”screw threads for flexible installing.

convert-sdi-to-hdmi

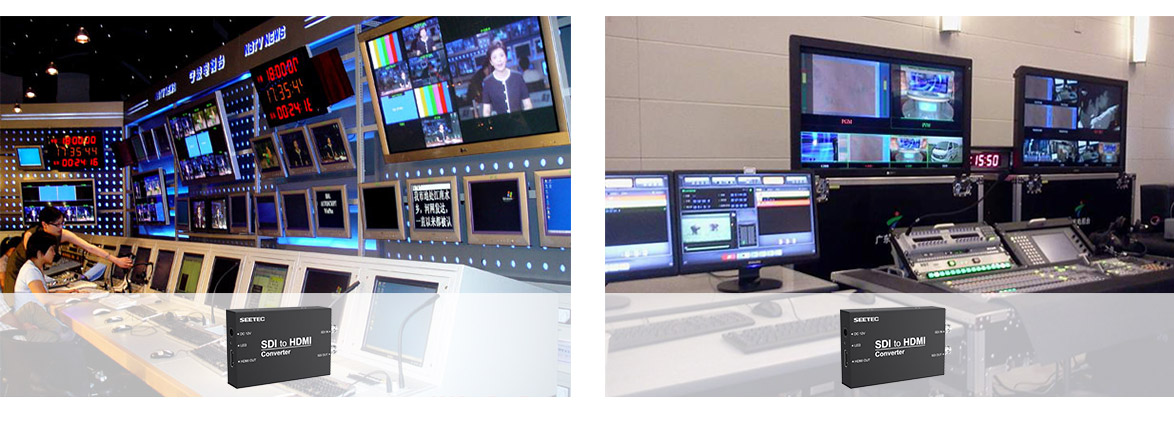

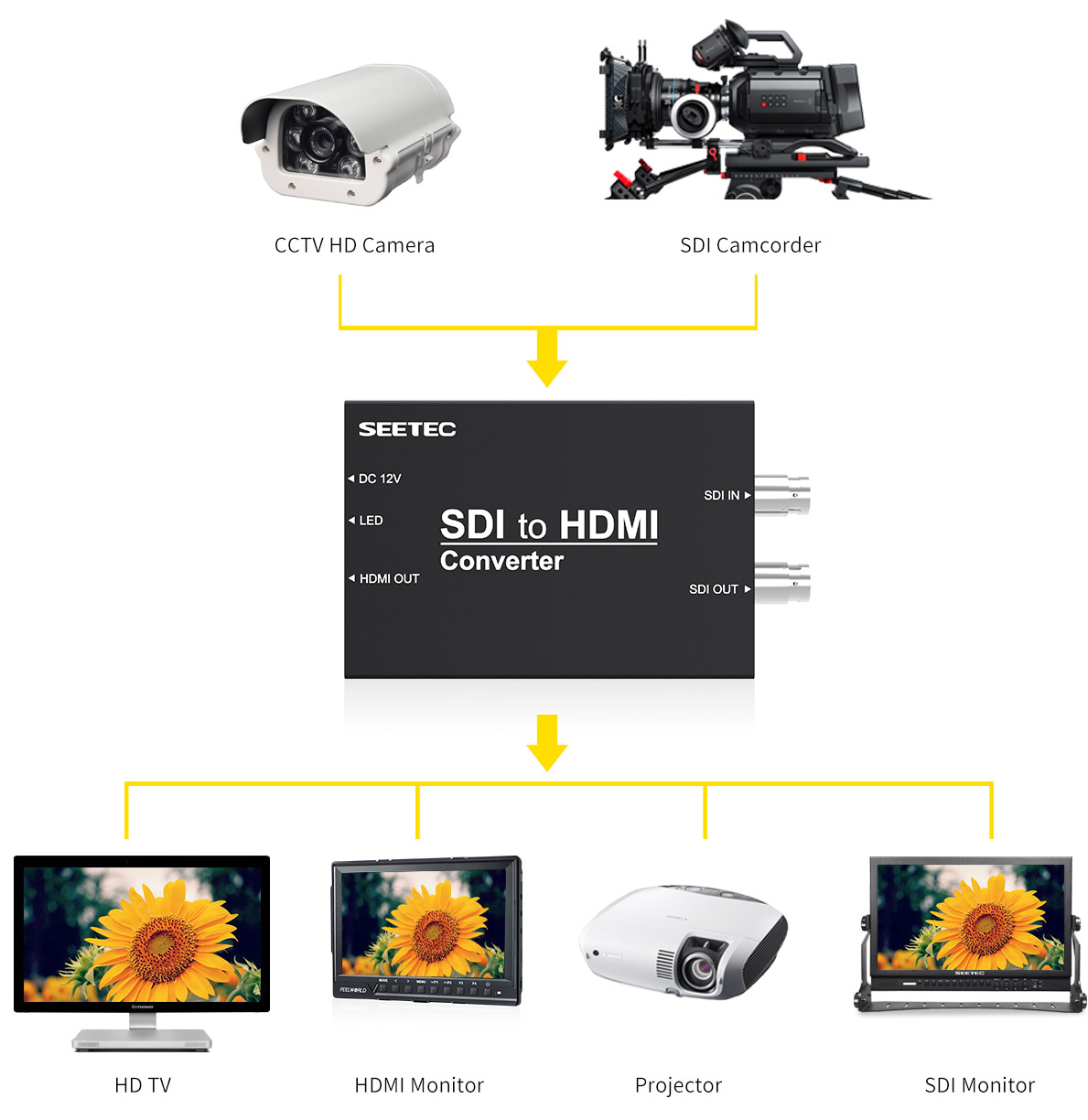

Application Show

/sd-to-hdmi





SDI to HDMI converter excellence compatibility, best image quality and supporting wide signal formats. 3G/HD/SD-SDI to HDMI broadcast grade converter is a professional video format converter which could convert HD digital component serial interface SDI signal to HDMI signal.
Widely applied in multimedia broadcast, program production and edit in broadcasting and television, HD video information release, HD video remote transmission, video conference, multimedia advertisement and video security monitoring and so on.

Features:
1. 1 SDI input, 1 HDMI output, and 1 SDI loop output.
2. Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M.
3. Enhanced HD signal processing technology supports maxim 100 meter 3G-SDI transmission.
4. Supports wide range input voltage from 5V - 24V.
5. Double Power Supply System, with DC adapter or battery.
6. Mini size design easy to carry for engineering.
7. Standard 1/4 screw threads for installing.
8. Power indicator.
9. Heavy duty metal housing.





Model
 STH (SDI to HDMI Converter)

Input
 1 X BNC  3G/HD/SD-SDI

Output
 1 X BNC  3G/HD/SD-SDI
 1 X HDMI  HDMI

SDI Support Format
3G-SDI:1080P(60/59.94/50)
HD-SDI:1080P(30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/29.97/25/24)

HDMI Support Format
1080P(60/59.94/50/30/29.97/25/24)
1080I(60/59.94/50)
1080PsF24
720P(60/59.94/50/30/29.97/25/24)

General
 Power Consumption  ≤3W
 Input Voltage  DC 5~24V
 Connector  DC 12V
 Battery Plate   F970 (Standard); D28S, E6 (Optional)
 Install Way  1/4"-20 Thread Socket
 Working Temperature  -20°C~60°C
 Storage Temperature  -30°C~70°C
 Unit Size (mm)  98.8L×67.4H×22.8D mm
 Unit Weight  180g/210g (With F970 Plate)

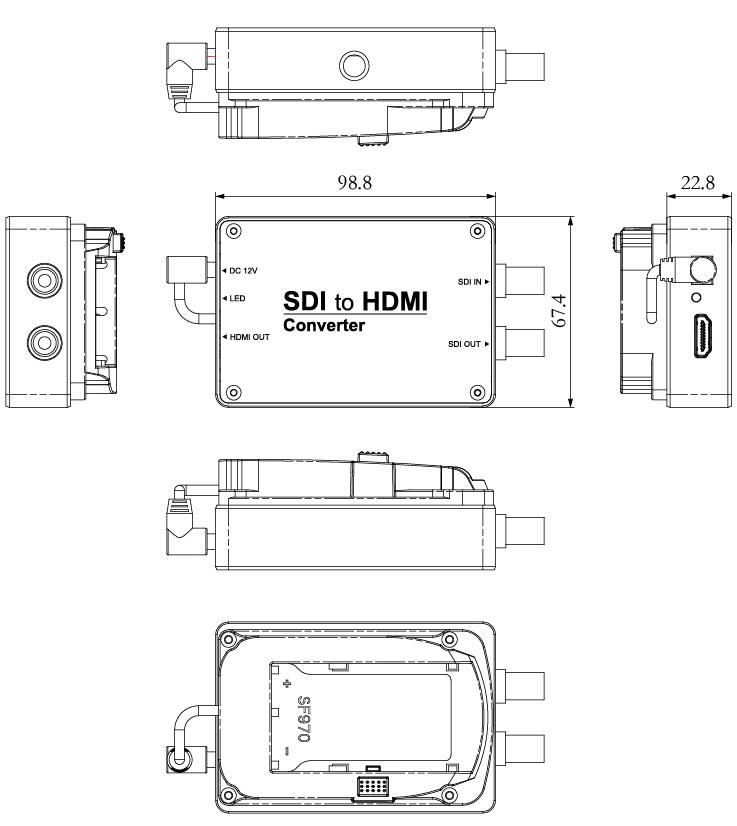

Dimensions (Unit: mm)

/sd-to-hdmi

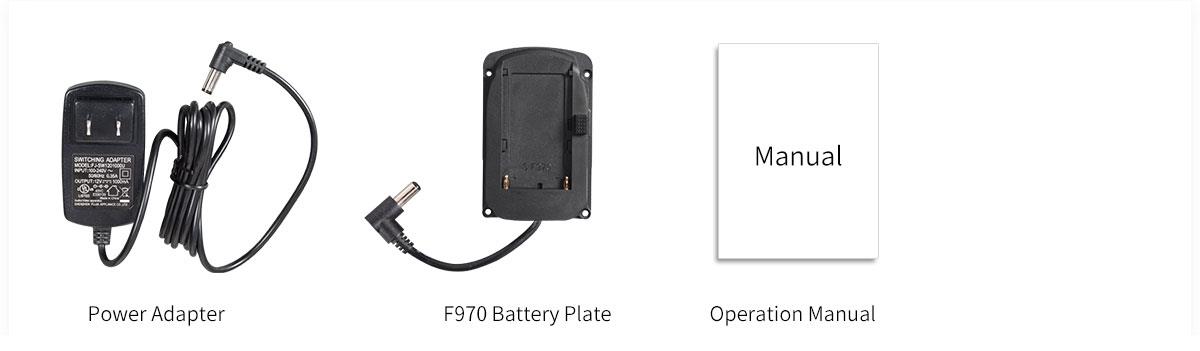

Standard Accessories:
1× Power Adapter
1× F970 Battery Plate
1× Operation Manual
