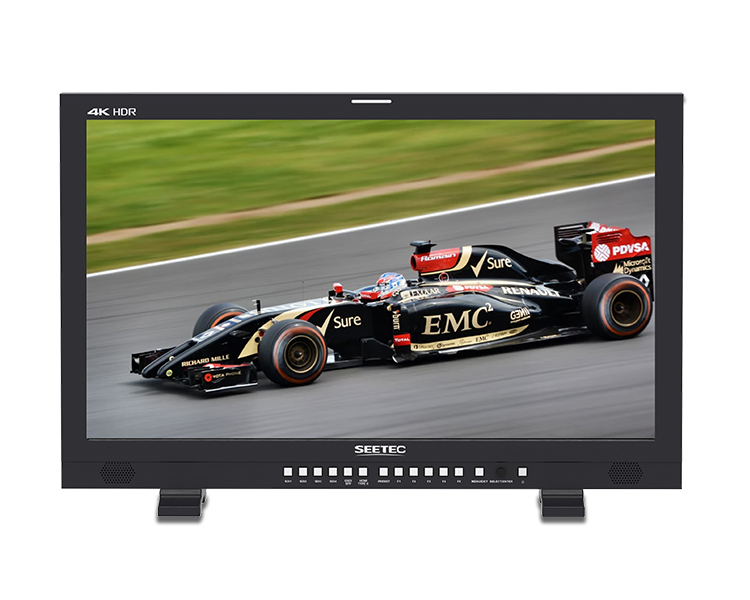

SEETEC 12G270D 27inch 4K Broadcast HDR Monitor 12G-SDI HDMI UltraHD 3840x2160
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES
● 27-inch 3840X2160 ultra HD large screen
● Rugged aluminium housing, durable
● Flexible and intuitive button operation, easy to use
● Supports multiple gamut, meet the different needs of photographers for color gamut.
● Mulitple display modes (Quade, Quadview triple side , Quadview triple bottom, PBP, PAP)
● SDR and HDR Image Comparison Function
● With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
● Multiple interfaces, meet different needs (2*12G-SDI inputs and outputs, 1*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
● Three Tally color(Red, Yellow, Green)
● Stereo Earphone output, speaker
● VESA standard mounting points support for hang wall installation
Key Features:
* 27-inch 3840X2160 ultra HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use)
* Supports wide color gamut for broadcast TV and film standards, meet the different needs of photographers for color gamut.
* Multiple display modes (Quad, Quadview triple side , Quadview triple bottom, PBP, PAP)
* SDR and HDR Image Comparison Function
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Multiple interfaces, meet different needs (2*12G-SDI inputs and outputs, 1*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
* Three Tally color(Red, Yellow, Green)
* Stereo Earphone output, speaker
* VESA standard mounting points support for hang wall installation

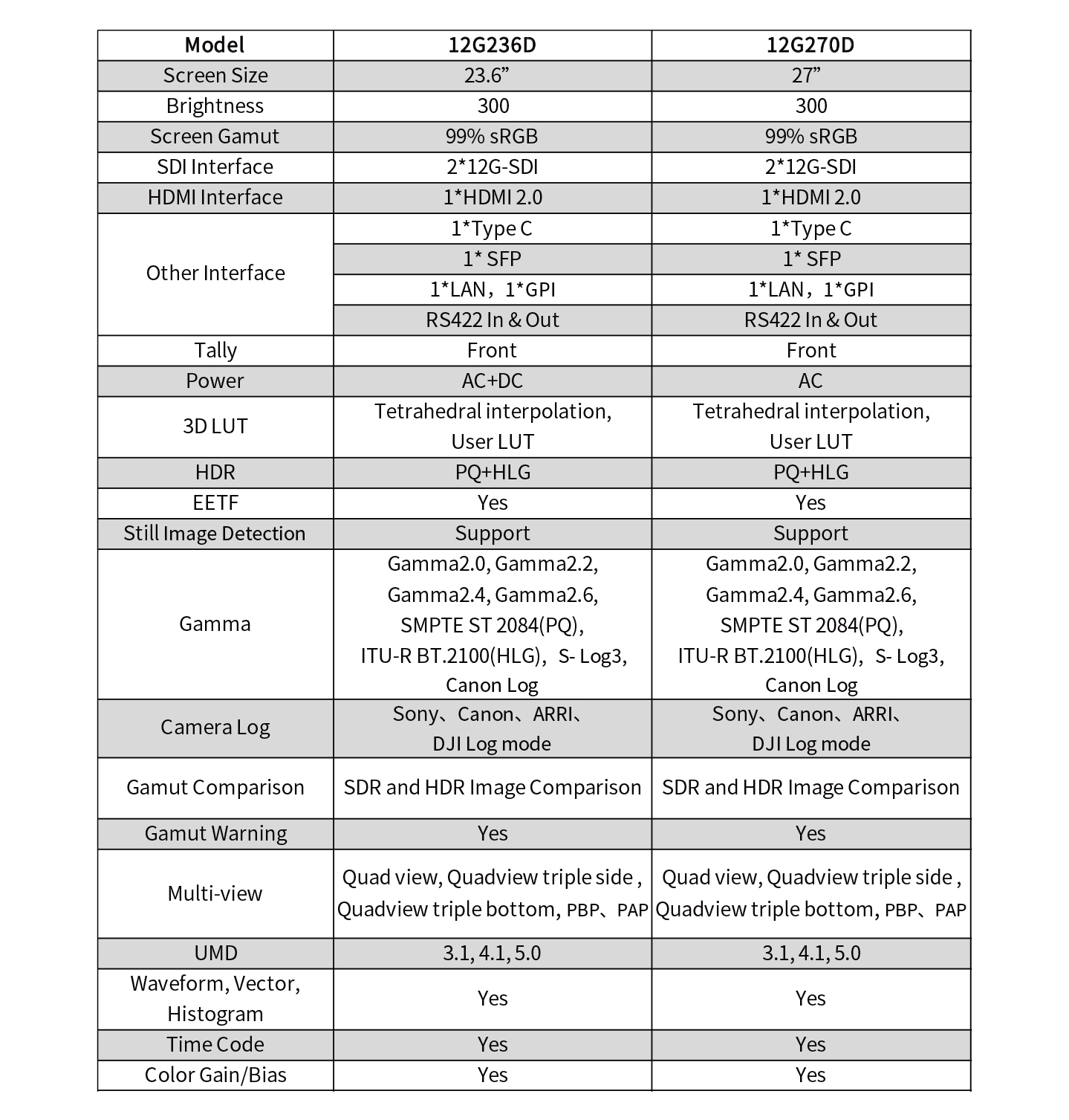

Model | 12G270D |
Screen Size | 27" IPS |
Color Depth | 8Bit(1.67M) |
Resolution | 3840×2160 pixels |
Pixel pitch | 0.1369(W) x 0.1369(V) mm |
Aspect Ratio | 16:9 |
Brightness | 300cd/m² |
Contrast Ratio | 1000:1 |
Backlight | LED |
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
2 X 12G-SDI | 12G-SDI |
1 X HDMI 2.0 | HDMI (support 4K) |
1 X RS422 | RS422 |
1 X GPI | GPI |
1 X USB | USB (upgrade and LUT import) |
1 X LAN | Ethernet |
1 X Type-C | Tpye-C (compatible with Lightning 3) |
1 X SFP | SFP Module (optional) |
2 X 12G-SDI | 12G-SDI |
1 X RS422 | RS422 |
Audio | Stereo Headphone, Speaker |
SMPTE-425M-A/B | 1080p (50/59.94/60) |
SMPTE-274M | 1080p (23.98/24/25/29.97/30p/psf) |
SMPTE-296M | 720p(60/59.94/50) |
SMPTE ST 2036-1:2009 | 3840×2160(23.98/24/25/29.97/30/50/59.94/60p) |
SMPTE ST 2048-2:2011 | 2048x1080(23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p) |
SMPTE ST 2081 | 3840x2160 (30/25/24p) |
SMPTE ST 2082 | 3840x2160 (60/50/30/25/24p) |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
1080i (60 / 59.94 / 50) |
720p (60 / 59.94 / 50) |
Input Voltage | AC 100V~240V |
Power Consumption | ≤75W |
Working Temperature | -10°C~55°C |
Storage Temperature | -20°C~60°C |

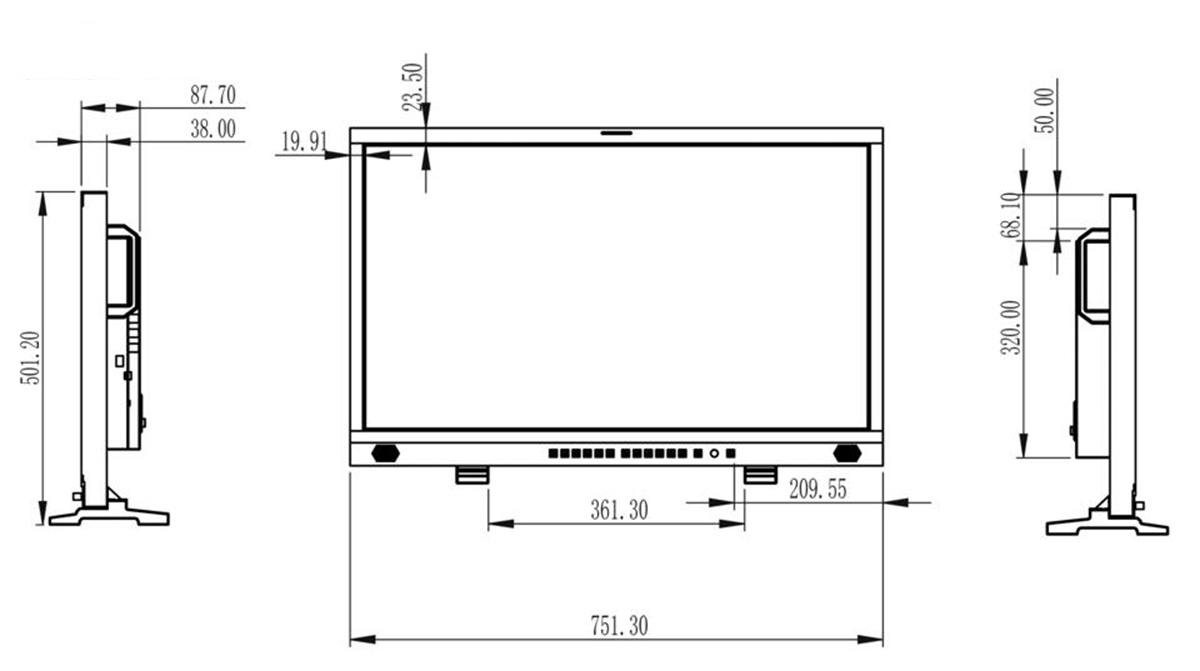

Unit Size | |
Unit Weight | |
Outer Carton Qty | |
Outer Carton Size | |
Gross Weight |
* Built-in Multi camera Delog LUTs |
* User 3DLUTs upload via USB (up to 8) |
* Support GPI control |
* Support dynamic IMD, support TSL 3.1/4.0/5.0 and IMAGE VIDEO protocol |
* Support TALLY |
* Support 16-ch embedded audio meters display |
* Histogram |
* HDR |
* Color Preset Mode (T.709, BT.2020 , DCI-P3, PQ_DCI-P3, PQ_BT.2100, HLG_BT.2100) |
* Gamma-EOTF (Gamma2.0, Gamma2.2, Gamma2.4, Gamma2.6, SMPTE ST 2084(PQ), ITU-R BT.2100(HLG), S-Log3, Canon Log) |
* PQ Options (PQ-300, PQ-500, PQ-1000) |
* Timecode Display |
* Color Gain (Red, Green, Blue) |
* Color Bias (Red, Green, Blue) |
* Under Scan, Over Scan |
* EETF |
* Center Marker |
* Safety Marker (80%、85%、88%、90%、93%) |
* Marker Mat (16:9, 15:9, 14:9, 13:9, 4:3, 2.35:1, 1.85:1) |
*Waveform (Luminance waveform, component waveform, RGB waveform, RGB overlay waveform ) |
* Gamma Warning |
* Gamma (ITU-R BT.709、SMPTE-C、EBU、DCI-P3、ITU-R BT.2020) |
* Crosshatch |
