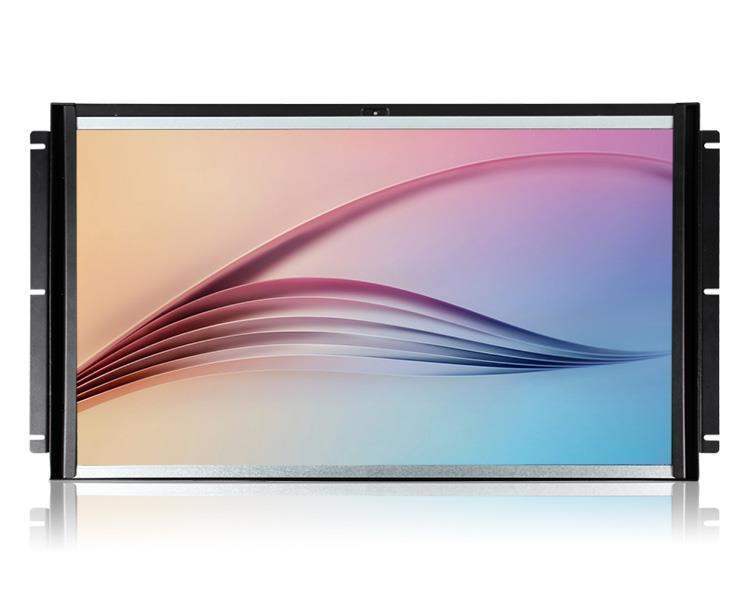

21.5" Light Sensor Digital Outdoor Sunlight Readable Lcd Open Frame Monitor P215-9AH
Model:P215-9AH
Introduction
Screen Size: 21.5"
Resolution: 1920×1080 pixels
Aspect ratio: 16:9
Brightness: 1000cd/m2
Input
HDMI, VGA, AV1, AV2, Audio
Output
Audio
DM
Shop/2017/9/SEETEC-P215-9AH-Specification.pdf
Download
OVERVIEW
FEATURES
SPECIFICATIONS
VIDEO
APPLICATION
ACCESSORIES

SEETEC's Open Frame LCD display is designed for commercial and industrial applications, Auto Light Sensor, high brightness 1000cd/m² for sunlight readable. Features wide operating temperature, high brightness, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.

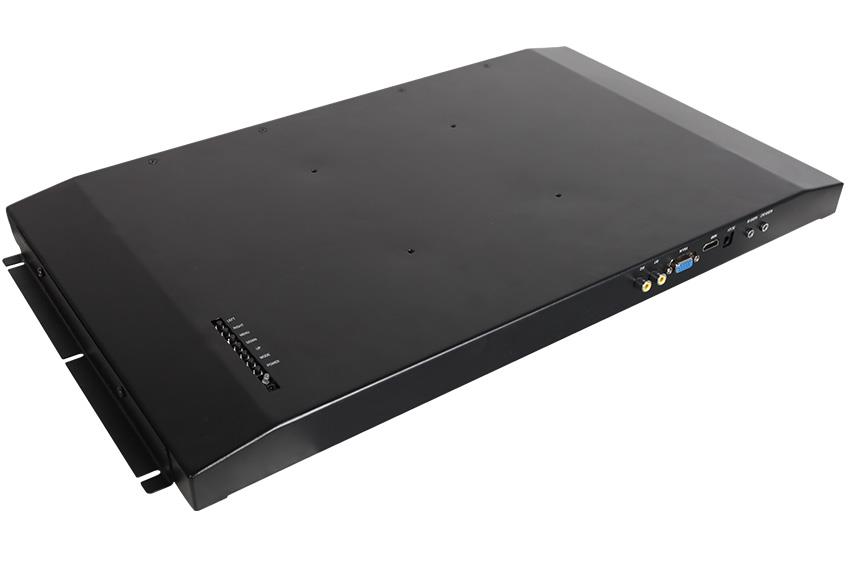

Customization Services
We're able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional.
We're able to design and adjust both hardware and software to match your cost and application requirement. Screen Size Optional, and the interface optional.

Features Highlights
As display technologies evolve, so do our customer's imaginations. SEETEC continues to engineering solutions to meet the diverse needs of the display marketplace. Whether your application is for a kiosk, CRT replacement, HMI, POS, Public Information Display or Digital Signage, this is the simple all-in-one solution for you. Easily integrated, we combine performance and quality with the versatility of an open frame chassis mountable product. Select from a wide variety of optional touch screens, protective glass, films or privacy shields. SEETEC custom designs and builds for OEM's, providing custom enclosures, private label products, display selection assistance, special power requirements and customized warranty and service programs.
As display technologies evolve, so do our customer's imaginations. SEETEC continues to engineering solutions to meet the diverse needs of the display marketplace. Whether your application is for a kiosk, CRT replacement, HMI, POS, Public Information Display or Digital Signage, this is the simple all-in-one solution for you. Easily integrated, we combine performance and quality with the versatility of an open frame chassis mountable product. Select from a wide variety of optional touch screens, protective glass, films or privacy shields. SEETEC custom designs and builds for OEM's, providing custom enclosures, private label products, display selection assistance, special power requirements and customized warranty and service programs.
Display Spec.
Model | P215-9AH |
Screen Size | 21.5" |
Color Depth | 16.7M |
Display Mode | TN Mode, Normally White |
Resolution | 1920×1080 pixels |
Pixel Pitch | 0.24825×0.24825 mm |
Aspect Ratio | 16:9 |
Brightness | 1000cd/m² (Light Sensor) |
Contrast Ratio | 1000:1 |
Backlight | LED |
Viewing Angle | 85°/85°(L/R) 80°/80°(U/D) |

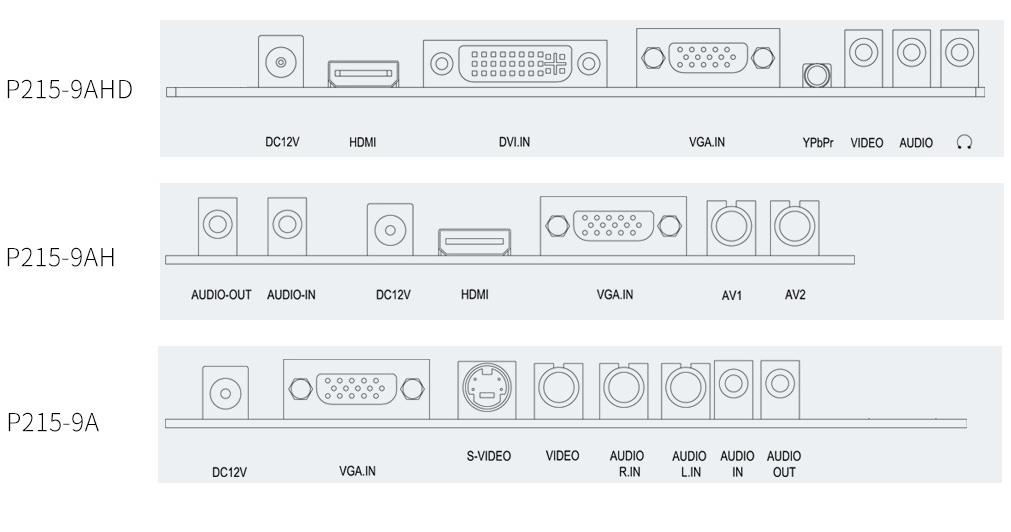

Interfaces (Optional)
P215-9AHD: HDMI, DVI, VGA, YPbPr, Video, Audio in, Aduio out |

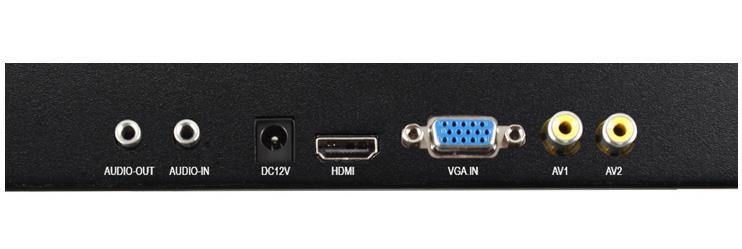

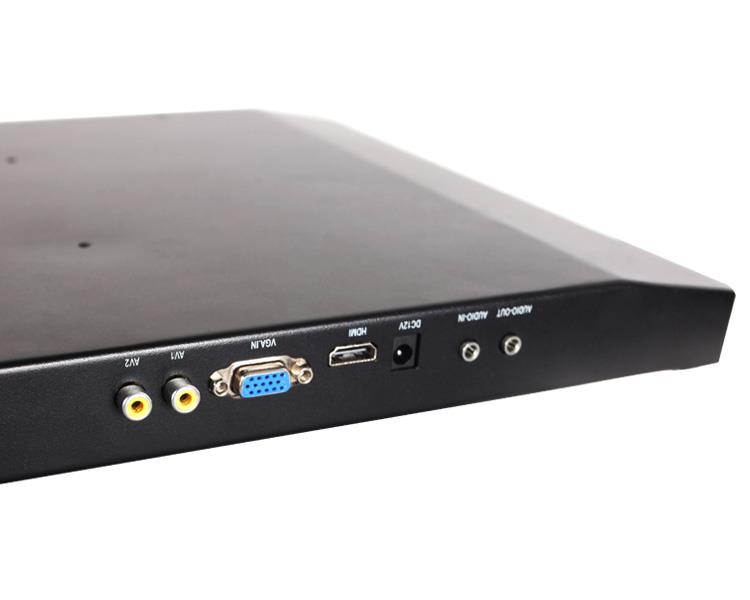

P215-9AH: Audio out, Audio in, HDMI, VGA, AV1, AV2 |
P215-9A: VGA, S-video, Video, Audio R/L in, Audio in, Audio out |
General
Input Voltage | DC12V |
Power Consumption | ≤32W |
Working Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Relative Humidity | 5(%RH)~90(%RH) |
Unit Size | 550L×301.6H×34D (mm) |
Unit Weight | 4.3kg |

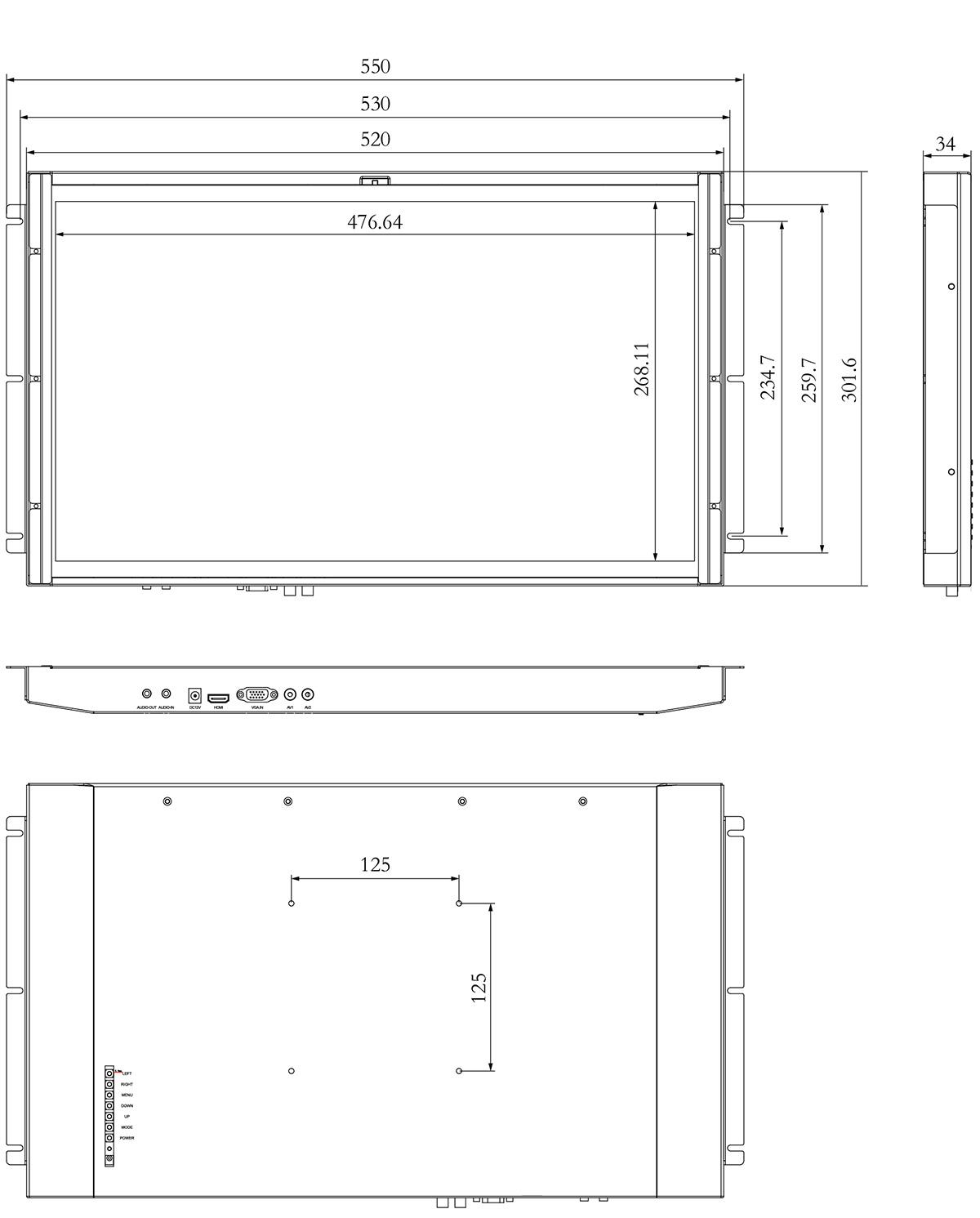

Dimensions (Unit: mm)

Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems
